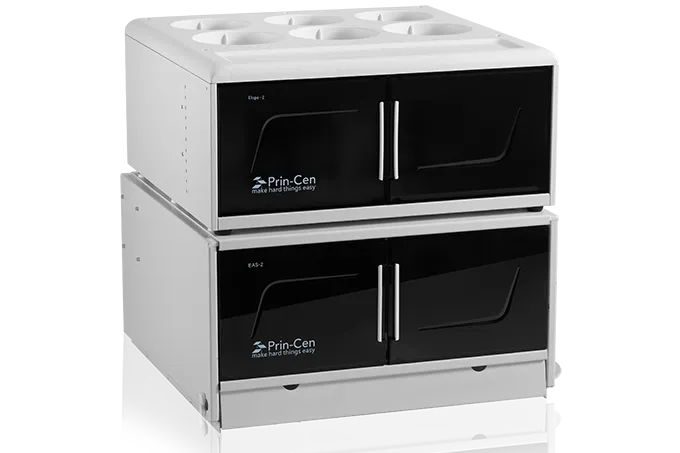

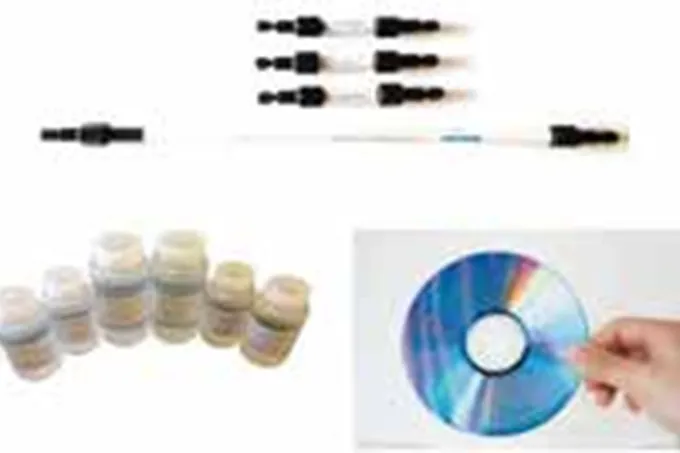

The ELSpe-2 Elemental Speciation Analyzer includes a high-pressure ion chromatography pump, an online speciation digestion system, a post-column hydride generation system (including a gas-liquid separation device), and a chromatography workstation. The detection range of the product covers toys, food, environment, leather, water, and other fields. It enables the elemental speciation analysis of multiple elements, such as As, Hg, Se, Sb, Cr, Br, Sn, Fe, Mn. The As Column and reagent kit are specifically designed for inorganic arsenic analysis. It offers advantages such as good separation efficiency, fast analysis speed, low reagent consumption, low operating costs, and easy operation. It can also perform analysis of methylmercury and ethylmercury.

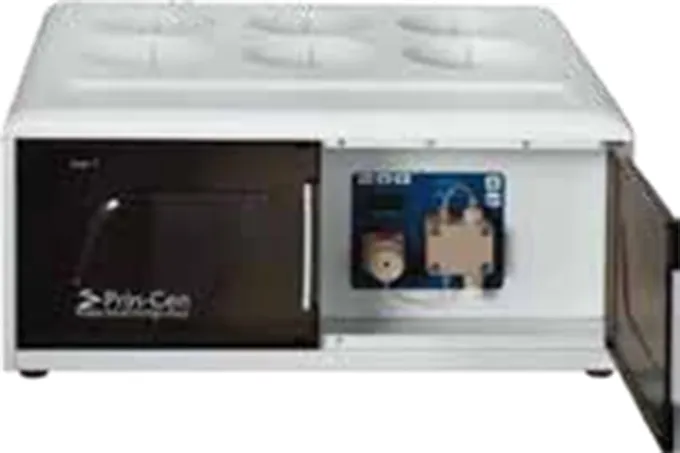

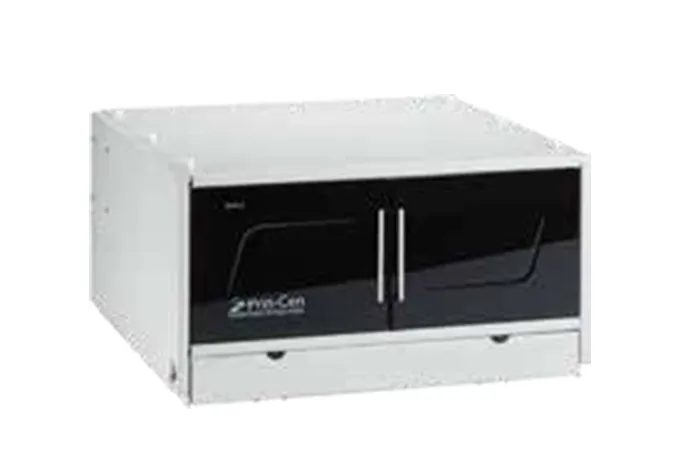

The system consists of a high-pressure ion chromatography pump, online speciation digestion system, post-column hydride generation system (including a gas-liquid separation device), chromatography workstation, and interface for hyphenation with AFS and ICPMS. It features a complete structure, full functionality, and optimal performance.
The patented hydride generation device saves over 80% of reagent consumption (hydrochloric acid and potassium borohydride).
With an AFS detector, at a concentration of 5 ppb, the signal-to-noise ratio for all components is greater than 30, and the detection limits are below 0.5 ppb for all species.
| Model | ELspe-2 |
| Application areas and Standards methods followed | Toys, food, environmental sample, leather, water, etc.Satisfy the needs of EU - EN 71-3:2019+A1:2021 "Safety of toys - Part 3: Migration of certain elements" |
| Detection Limit | ppb level |
| Flow Rate Range | 0.01~5.00 mL/min |
| Flow Accuracy | <0.1% |
| Pressure Range | 0~5000 psi (35 MPa) |
| Pressure Pulsation | <0.1% |
| Analyze Time | <7 mins |
| Analysis Method | LC-AFS / LC-ICPMS |
| Software | Available in both Chinese and English versions, with functions such as simultaneous control, data acquisition/storage/processing. It supports chromatographic peak integration setting, qualitative analysis by retention time, peak area and concentration calculations, half-peak width calculation, and signal-to-noise ratio calculation. |
| Power Supply | 220V±10%, 50Hz |
| Instrument Dimensions | Desktop, modular construction 470mm440mm480mm (LWH) |
| Instrument Weight | 36kg |
