An open multifunctional platform, flexibly configurable with quaternary gradient pumps, MSS-2 sample processing systems and various detectors. It has ppt-level detection capability, pressure resistance of 0~42MPa and all-PEEK flow paths, handling routine, complex matrix and ultra-trace ion analysis, and separating sugars and amino acids.
The IC-50 quaternary gradient pumps offer the widest range of applications and the greatest flexibility in eluent composition (e.g., gradients of sodium acetate, methanol or acetonitrile), which is essential for the separation and detection of sugars and amino acids.

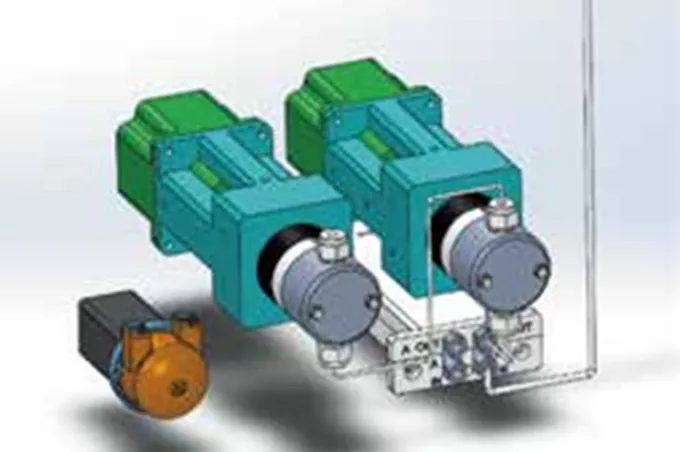

Independently driven dual piston serial pump provides stable high pressure and small pressure pulsation. The fully inert PEEK pump head and flow path are compatible with 0-14 pH eluents, and a built-in plunger cleaning function is included.
Digital conductivity detector with a standard measuring range of 0-100,000 μS/cm, featuring fully automatic range conversion that requires no manual setting.
Conductivity detector with resolution down to 0.001 nS/cm, enabling ultra-sensitive trace analysis.
Thermostatted cell with temperature resolution up to 0.001°C, ensuring stable and accurate measurement conditions.
The conductivity cell can withstand pressure up to 10 MPa or higher, delivering reliable performance under demanding operating conditions.
Controlled external water addition mode of the suppressor, optimizing suppression efficiency and baseline stability.
One or more different types of detectors can be configured to meet the needs of different analytes and to enable comparison of detector performance for the same analyte.
Expandable with additional accessories and hyphenated technologies, supporting future upgrades and advanced analytical workflows.
| Model | IC-50 |
| Application areas | Marine, environmental, food, pesticide residues, semiconductor, geological, pharmaceutical impurities, biological, cosmetics, drinking water, and other fields. |
| Detection Limit | ppt level |
| Flow Rate Range | 0.01-5.00 mL/min (standard), 0.01-20.00 mL/min (optional, in 0.01 mL/min increments) |
| Flow Rate Accuracy | <0.1% |
| Pressure Range | 0~6000 psi (42 MPa) |
| Pressure Pulsation | <0.1% |
| Temperature Range | Room temperature +5°C to 80°C |
| Temperature Stability | ±0.1°C |

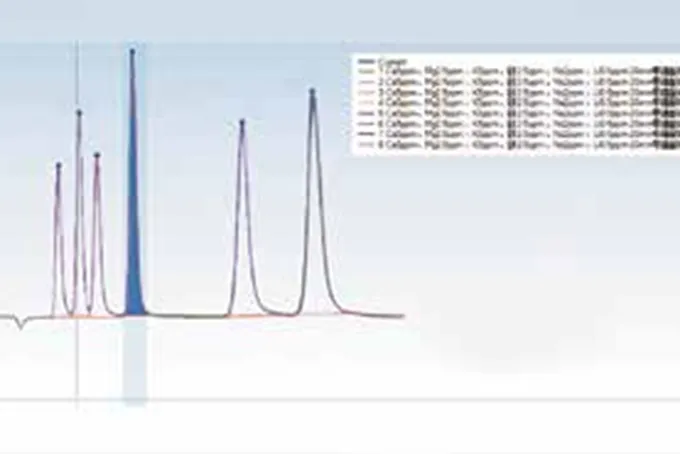

| Software | EasySpec Workstation provides instrument control and data acquisition/storage/processing, including chromatographic peak integration, qualitative analysis by retention time, peak area and concentration calculations, half-peak width calculation, and signal-to-noise ratio calculation. |
| Power Supply | 220V ±10%, 50Hz |
| Instrument Dimensions | Desktop design, modular assembly, 602mm * 525mm * 830mm (LWH) |
| Instrument Weight | 67kg |
