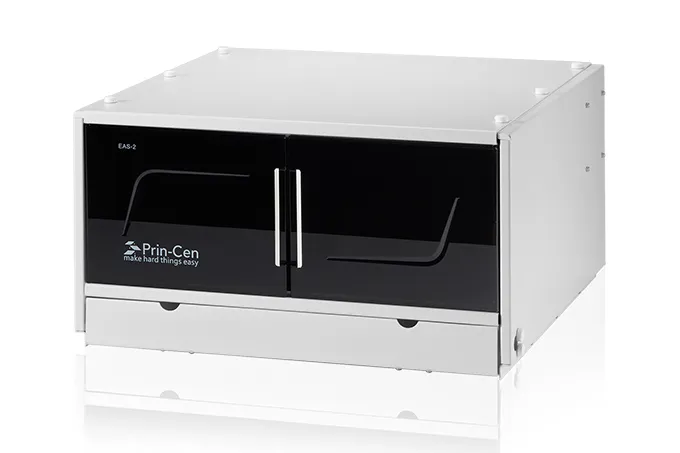

The EAS-2A Autosampler adopts a dual-stroke inner and outer dual-needle structure, where the outer metal needles open the septum and the inner PEEK needle pull the sample solution.This design prevents sample contamination, exhibits strong anti-interference capability, and ensures high accuracy. It is a high-precision, high-throughput scientific instrument.
| Model | EAS-2A |
| Application areas | Applications requiring automated sampling. |
| Type | Automatic sampler with X, Y, Z three-dimensional motor drive. |
| Quantification Method | Can choose full-loop injection (quantification by the quantification loop) or partial-loop injection (quantification by the built-in high-precision syringe pump). |
| Sample Capacity | 120-position (2 mL, optional 2.5 mL) injection vial |
| Injection Volume | 1-500 μL (standard), 2500 μL, 5000 μL are optional, continuously adjustable under software control. |
| Washing | Can set pre/post-wash needles with pre-wash needle function to minimize ineffective waiting time. |
| Repeatability | <0.5% |
| Cross-Contamination | <0.02% |
| Compatibility | Can trigger other detectors such as ICP-MS, AFS, MS and other IC systems. |
| Function | Single-point automatic preparation of standard curves, with a linearity greater than 0.999. |
| Power Supply | 220V ±10%, 50Hz |
| Instrument Dimensions | Desktop design, 462mm * 438mm * 252mm (LWH) |
| Instrument Weight | 20kg |
