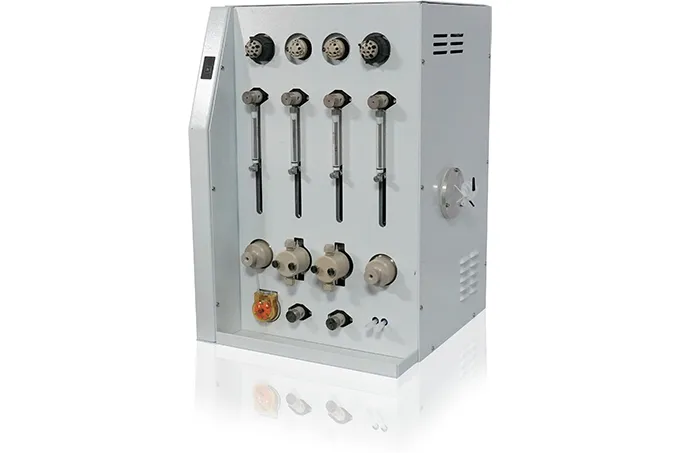

The MSS-2 Multifunctional Sample Processing System is a pretreatment system that can be configured with up to four “six/ten-port switching valves”, two “three-way switching valves”, four “syringe pumps”, one set of “high-pressure ion chromatography pump”, one set of “vacuum pump”, one set of “peristaltic pump”, and one “temperature control reaction module”. It can be used in conjunction with various spectrometers, chromatographs, and mass spectrometers, and provides interfaces for coupling. It offers automated pre-processing for complex samples.
| Model | MSS-2 |
| Application areas | Automated pre-processing for complex samples |
| High-pressure ion chromatography pump | Maximum pressure: 35 MPa (5000 psi)Flow rate range: 0.01~5.00 mL/min (increments of 0.01)Flow accuracy:<0.2% |
| High-pressure six/ten-port switching valves | Two-position six/ten-port switching valves with a full PEEK flow path, pressure resistance > 35 MPa (5000 psi) |
| Three-way switching valves | Plastic flow path, pressure resistance > 1 MPa (150 psi) |
| Intelligent temperature control module | PTFE flow path, temperature adjustable from room temperature to 100°C |
| Precision syringe pump | 0.25 mL-10 mL optional, 1 μL step increase volume |
| Instrument Dimensions | 344mm * 360mm * 512mm (LWH) |
| Instrument Weight | 21kg |
